Inheritance diagram for SideMeasuringHead:

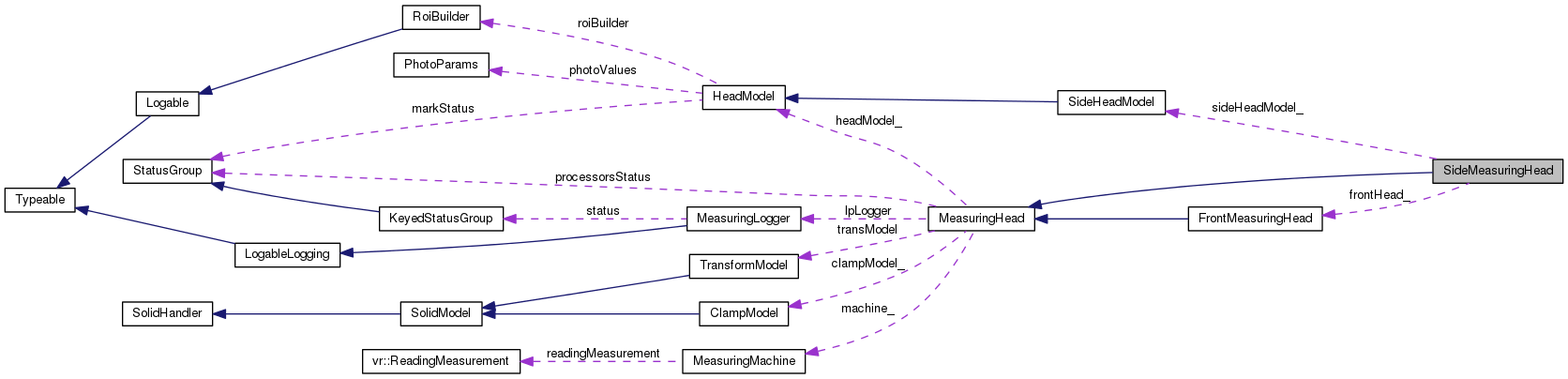

Collaboration diagram for SideMeasuringHead:

Public Member Functions
	SideMeasuringHead (MeasuringMachine &machine, LateralSide side, ClampModel &clampModel, FrontMeasuringHead &frontHead)

void	analyseImage ()

void	postAnalyse ()

void	calculateSideBox (double fScale, double vertIris, double frameThickness)

void	handleCorrection (const ExposureArrangement exposureArrangement)

Public Member Functions inherited from MeasuringHead
	MeasuringHead (MeasuringMachine &machine, HeadModel &headModel, ClampModel &clampModel)

void	setImageValues (const std::string &fileName, const StatusInfo statusInfo)

void	setOpticalAxis (const double axis[2])

void	getOpticalAxis (double axis[2])

StatusInfo	getImageStatusInfo () const

void	setResultValues (const std::string &fileName, const StatusInfo statusInfo)

StatusInfo	getResultStatusInfo () const

void	setPercentageMarkMargins (const int margins[4])

void	setTransformation (const int imageSize[2], const int cutOffset[2], const double pivot[2], const double angle)

void	getTransformation (int imageSize[2], int cutOffset[2], double pivot[2], double &angle)

void	setMeasuringLogger (MeasuringLogger *lpLogger)

double	getPlanarNorm (int markIdxA, int markIdxB)

bool	isPointValid (const size_t idx)

void	setPointValid (const size_t idx)

void	setPointInValid (const size_t idx)

bool	readImageFile (const ExposureArrangement exposureArrangement)

TransformModel &	getTransModel ()

Protected Member Functions
virtual void	createPictureProcessors ()

virtual bool	isProfile () const

Protected Member Functions inherited from MeasuringHead
void	undistortImage (const ExposureArrangement exposureArrangement, cv::Mat &org, cv::Mat &cor)

void	prepareIPad_2_zoom4 (cv::Mat &org, cv::Mat &cor)

void	prepareScale (cv::Mat &org, cv::Mat &cor, double fHorz=1., double fVert=1.)

void	inverseTransformClampModel ()

void	transformClampModel ()

void	resetProcessors ()

void	deleteProcessors ()

std::string	getLogName ()

bool	isPointStatus (size_t idx, StatusValue status)

void	setPointStatus (size_t idx, StatusValue status)

void	clearPointStatus (size_t idx, StatusValue status)

bool	mainMarksValid ()

bool	ImageAnalysisDone () const

void	markDataToClamp (const MarkImageData &markData, SolidPoint &pt)

void	clampDataToMark (const SolidPoint &pt, MarkImageData &markData)

void	setPhotoParams (const PhotoParams &photoValues)

void	getPhotoParams (PhotoParams &vals)

void	correctImage (const ExposureArrangement exposureArrangement)

Protected Attributes
SideHeadModel	sideHeadModel_

FrontMeasuringHead &	frontHead_

Protected Attributes inherited from MeasuringHead
MeasuringMachine &	machine_

std::string	imageFileName

std::string	resultImageFileName

StatusInfo	imageStatusInfo

StatusInfo	resultImageStatusInfo

cv::Mat	cameraMatrix_

cv::Mat	distCoeffs_

int	calibSize_ [2]

HeadModel &	headModel_

ClampModel &	clampModel_

TransformModel	transModel

StatusGroup	processorsStatus

std::vector< Processable * >	pictureProcessors

MeasuringLogger *	lpLogger

Detailed Description

The documentation for this class was generated from the following files:
